Remote Oil Filter Block Adapter for VG30DE(TT)

Designed to work with the BDE Bedplate Main Girdle and BDE Pro Oil Pan, the new BDE VG30DE(TT) remote oil filter block adapter will also work on any VG. It replaces the OE oil filter tree and allows you to plumb a remote oil filter and full-flow cooler with -10 AN (0.500" ID) hose and fittings.

Note a NA VG block has its filter bypass valves installed in the block and these valves will need to be removed and plugged for full-flow capability.

Design Features:

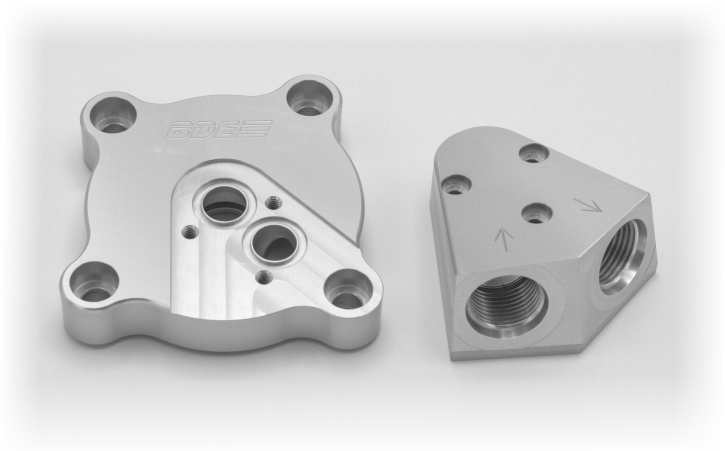

  • 6061 T6 billet aluminum construction
  • No gaskets! All sealing surfaces utilize o-rings
  • -10 AN ORB inlet and outlets

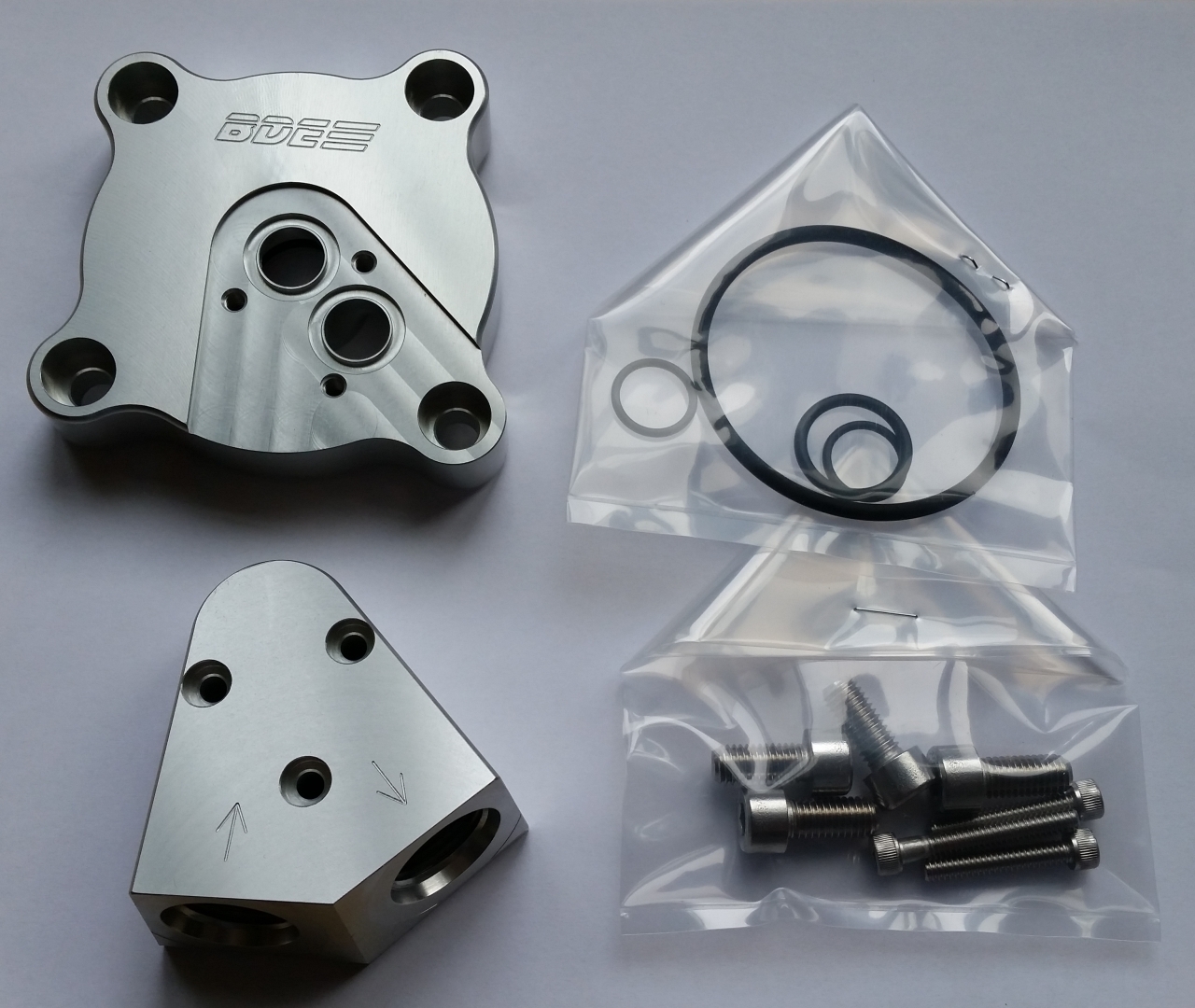

  • Viton o-rings included
  • Stainless steel hardware included

PN: BDE-6030, Price - $167.50

Remote Oil Filter Adapter Installation Instructions VG30DE(TT)

Click on the images below for a larger view (this will open a new window).






BDE products are designed and intended for off-road racing use only
