Z32/VG Heater Pipes with AN Turbo Cooling Ports

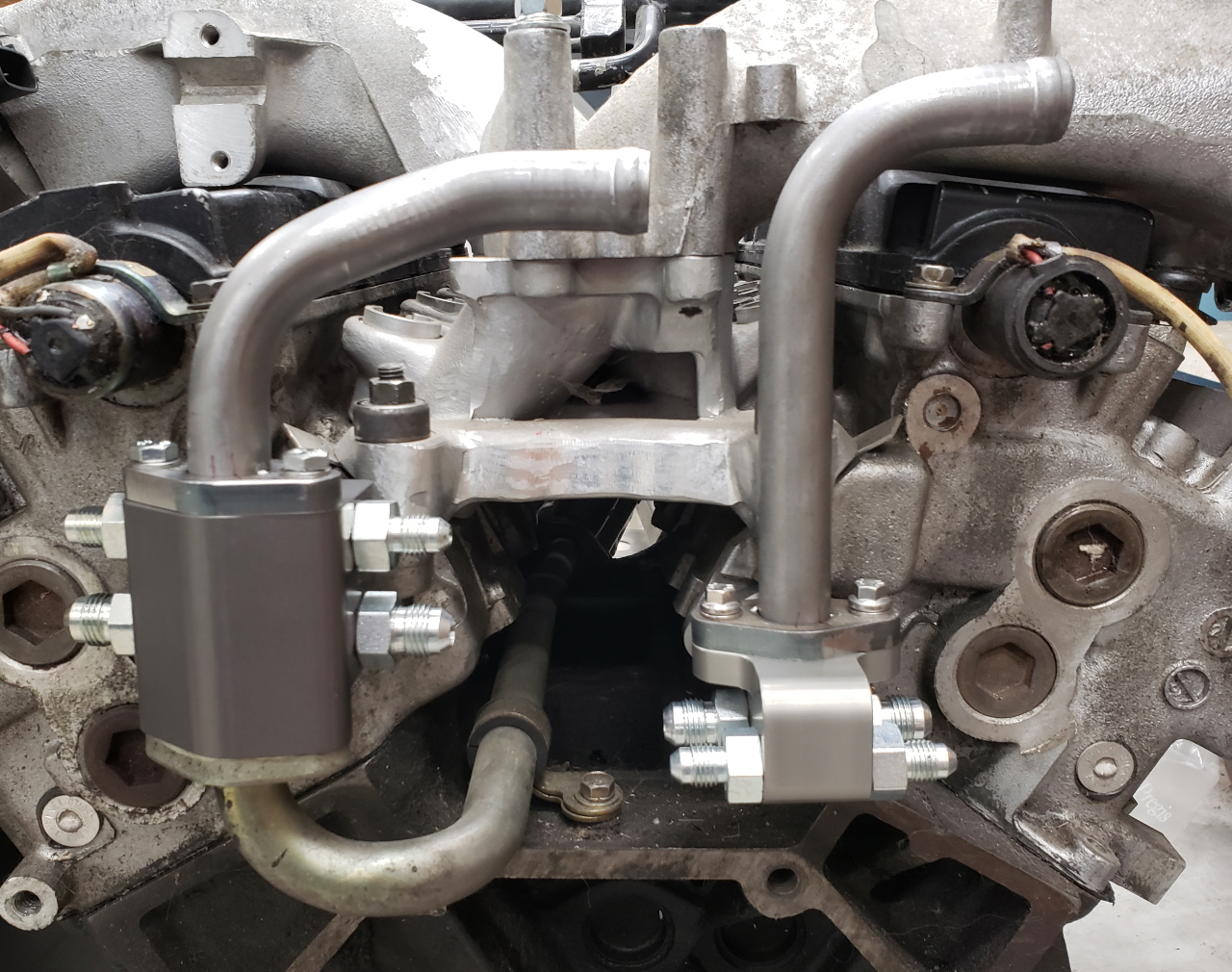

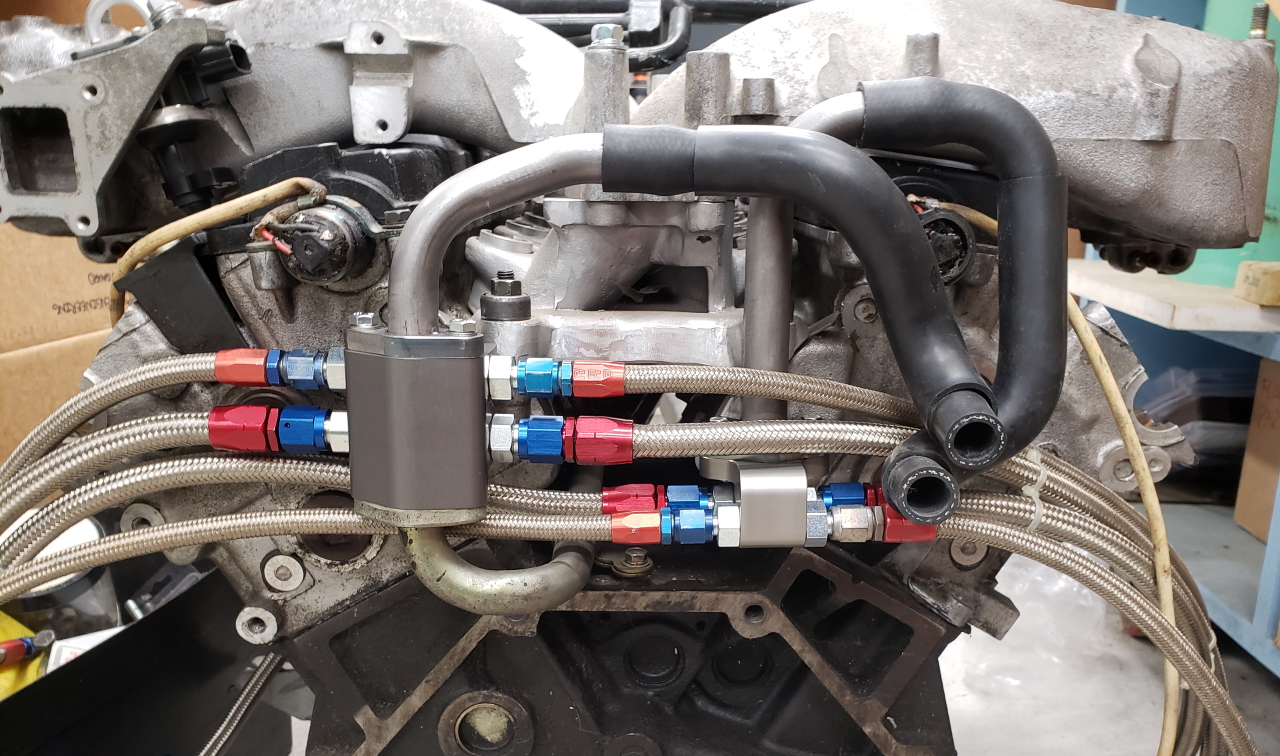

The BDE Z32/VG heater pipes feature four high pressure and four low pressure -6 ORB ports for plumbing AN fittings and hose to the turbos and external wastegates. Works with stock heater hoses, AN plumbing of hose to turbos/wastegates is DIY. Complete kit includes the following:

  • 6061 T6 hard anodized high and low pressure adapters
  • Zinc plated thick-wall heater pipes
  • Viton o-rings at all sealing surfaces
  • Four -6 ORB to -6 AN adapters for turbo cooling
  • Four -6 ORB to -4 AN adapters for wastegate cooling
  • Four -6 ORB plugs in case you don't have water cooled wastegates
  • Viton o-rings at all sealing surfaces
  • Stainless steel fasteners

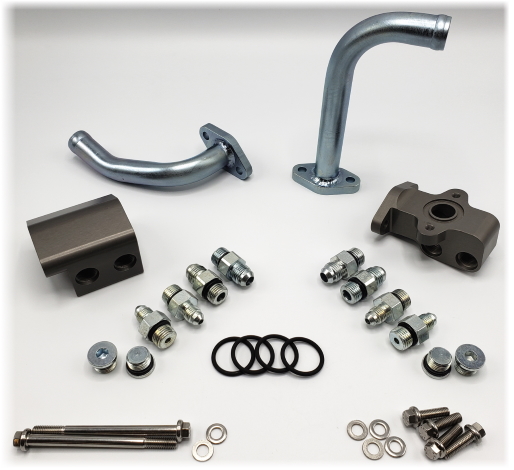

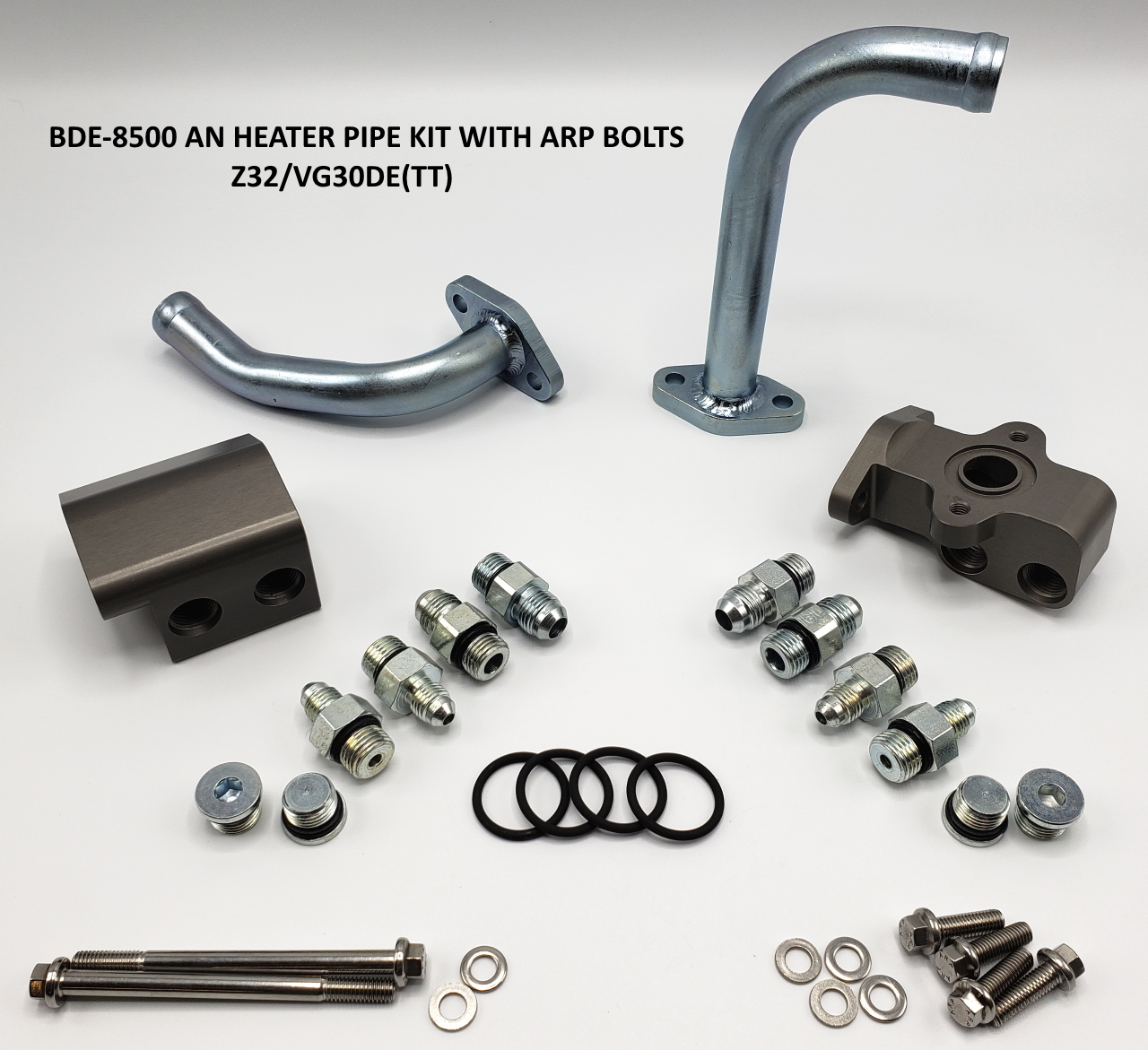

PN: BDE-8500 Z32/VG30 AN Turbo Cooling Heater Pipe Kit with ARP bolts, Price - $255.00

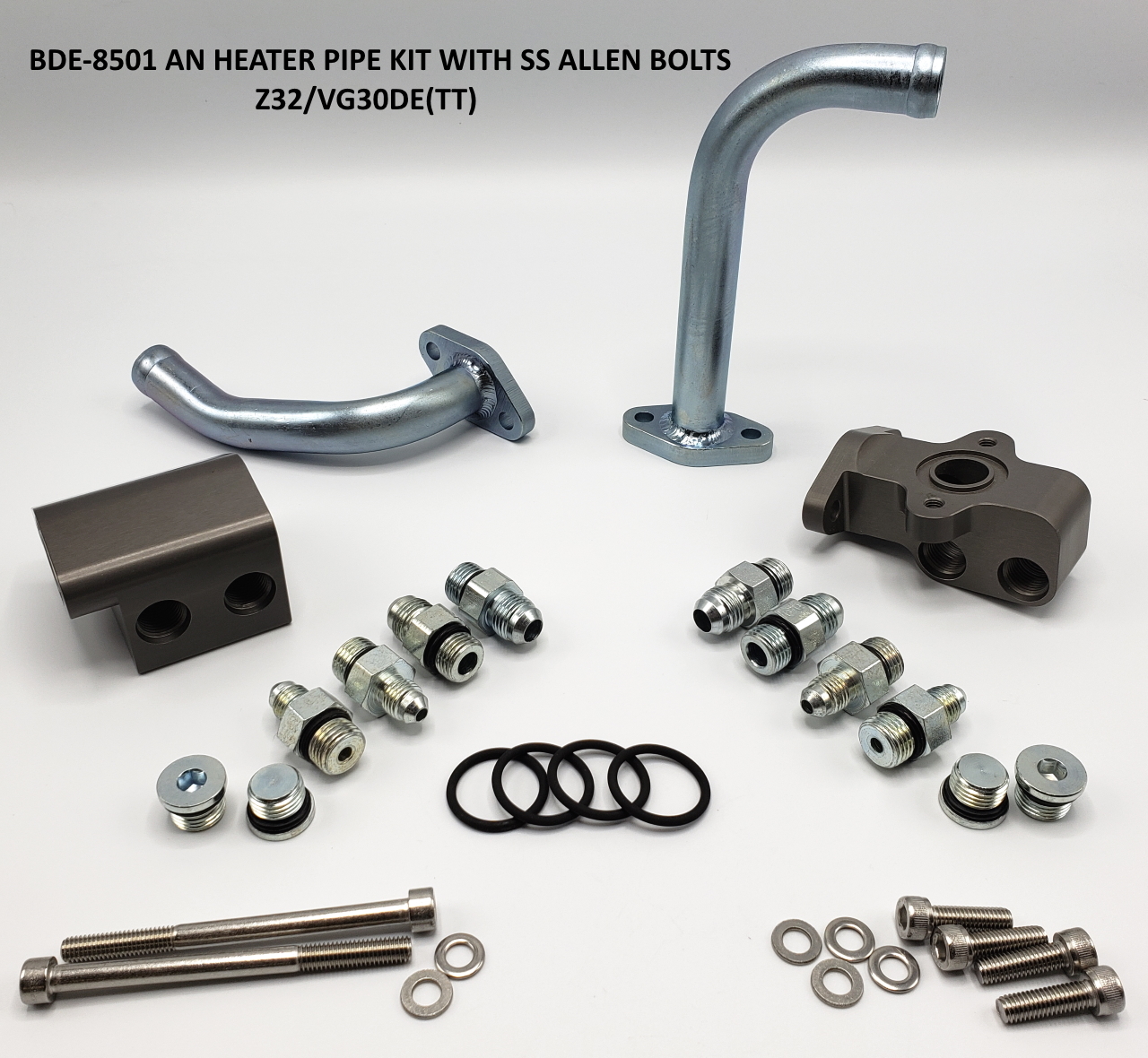

PN: BDE-8501 Z32/VG30 AN Turbo Cooling Heater Pipe Kit with SS Allen bolts, Price - $225.00

BDE Z32VG30 Heater Pipe AN Turbo Cooling Installation Instructions

Click on the images below for a larger view (this will open a new window).






BDE products are designed and intended for off-road racing use only
